Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour

    Buy cheap Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour from wholesalers

    Buy cheap Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour from wholesalers
    • Buy cheap Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour from wholesalers

    Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour

    Ask Lasest Price
    Brand Name : B&J
    Model Number : BJS1
    Certification : TUV
    Price : according to your quantity
    Payment Terms : L/C, T/T, L/C, Western Union, D/P, MoneyGram
    Supply Ability : 40000 PCS PER MONTH
    Delivery Time : According to your quantity
    • Product Details
    • Company Profile

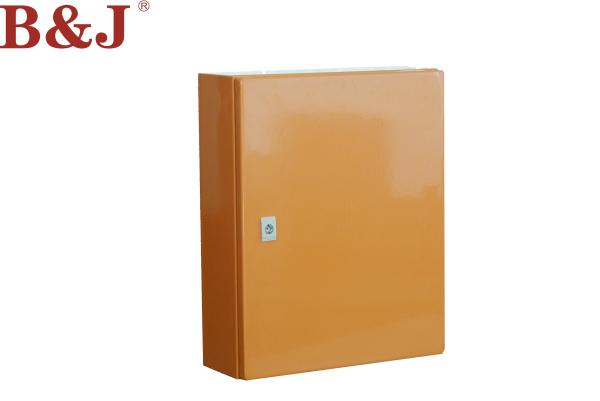

    Single Door Lockable Metal Enclosure 1.2mm Zinc Coated Steel Custom Colour

    BJS1 single door wallmounting metal steel enclosure boxes IP66
    Applications:
    • These enclosures are designed to provide protection against dust, dirt, oil and water. They are suitable for areas subject to high pressure hosing and generally wet conditions.
    • We specialize in offering a wide range of Wall Mounted Enclosure. These are acclaimed for their rugged construction and effective performance. manufactured using unamcthed quality components and as per international industrial standards, these devices ensure robustness, durability and high functional efficiency. our products are admired for their rugged construction and effective performance.
    • Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish.
    Features:
    • IP66 protection rating
    • Specially designed gutter system
    • 120º door opening provides easy access
    • Door rails come as standard fitted to the inside of the door
    • Unique wall-mount feature ensures installation is quick and easy with no need to drill holes in the enclosures body


    Standards

    • IEC 60529, IP66,IK10


    Seuface finish:

    • Enclosure and door: Epoxy polyester powder coating textured finish
    • Color: RAL7032 or RAL7035


    Construction

    • Formed 1.2mm or 1.5mm steel.
    • Smooth, continuously welded seams ground smooth.
    • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
    • Formed lip on enclosure to exclude flowing liquids and contaminants.
    • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
    • Doors may be easily removed for modifications and are interchangeable.
    • Seamless poured-in place gasket.
    • Collar studs provided for mounting plate
    • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
    • Bonding stud provided on door and grounding stud installed in enclosure.
    • turn latch and multi-point handle (key lockable) are zinc diecast with epoxy finish.
    Material:
    • Enclosure: sheet steel 1.2mm till height 800 then 1.5mm
    • Door: sheet steel 1.2mm till height 600 then 1.5mm
    • Mounting plate:1.5mm till height 800 then 2.0mm



    Supply include:

    • Enclosure and door,mounting plate,lock system,gland plate,sealing gasket and accessories


    Dimension(mm):

    ReferenceSize
    BJS1-22/150200200150
    BJS1-2520/150250200150
    BJS1-32/150300200150
    BJS1-33/150300300150
    BJS1-33/200300300200
    BJS1-43/150400300150
    BJS1-43/200400300200
    BJS1-44/150400400150
    BJS1-44/200400400200
    BJS1-54/200500400200
    BJS1-55/200500500200
    BJS1-64/200600400200
    BJS1-64/250600400250
    BJS1-65/200600500200
    BJS1-65/250600500250
    BJS1-86/200800600200
    BJS1-86/250800600250
    BJS1-106/3501000600350
    BJS1-106/3001000600300
    BJS1-108/3501000800350
    BJS1-108/3001000800300
    BJS1-128/3001200800300
    BJS1-1210/30012001000300
    BJS1-1212/30012001200300


    Warranty Service:

    We 100% Gurantee your Satisfaction
    1. Pls report us if there are any problem, we will solve it ASAP.
    2 .This items comes with 1 YEAR warranty.
    Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging
    3. Shipping and handling fees are not refundable for return or exchange items.


    Philosophy of the Company:

    Excellent design,Excellent make.Excellent service.
