• Construction: Fully welded. The front lip of the enclosure is folded to provide rigidity and forms a gutter to keep liquids from the gasket.
• Four wall mounting holes on the back panel of the enclosure are provided with plastic plugs that protect the body when
• the enclosure is placed on its back.

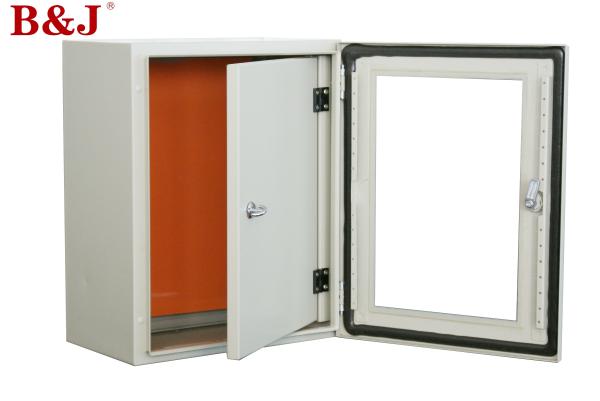

• Innerdoor: the door can be removed with the bracket by your requirement.Each door contains integral cable management rail studs, M6 earth stud.
• Outdoor: Folded edges provide rigidity to the door. Doors open up to 120°, can be hinged right or left and can be easily removed.with lift-off type spring pin hinges.
• The gasket is continuous formed polyurethane which provides excellent sealing and a high IP rating over a very long life. Doors are provided with standard double wing locks. A choice of locks and handles are available as options.
• Gland Plates: Gland plates are provided with gaskets and fixing studs. The size and number of gland plates depends on the enclosure

Standards

• IEC 60529, IP66,IK10

Seuface finish:

• Enclosure and door: Epoxy polyester powder coating textured finish
• Color: RAL7032 ,RAL7035 and custom

Construction

• Formed 1.2mm or 1.5mm steel.
• Smooth, continuously welded seams ground smooth.
• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• Doors may be easily removed for modifications and are interchangeable.
• Seamless poured-in place gasket.
• Collar studs provided for mounting plate
• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• Bonding stud provided on door and grounding stud installed in enclosure.
• turn latch and multi-point handle (key lockable) are zinc diecast with epoxy finish.

Supply include:

• Enclosure and door,mounting plate,lock system,gland plate,sealing gasket and accessories

Dimension(mm):
